Leica Lino L6G-1

Leica Lino L6G-1

The Leica Lino L6G is a multi-line laser with self-levelling and 360° laser line projection that enables multidirectional alignment and is perfect for indoor applications. Once the plumb point has been defined, the vertical laser lines can be easily adjusted to ensure consistency across all projects.

Green multi-line laser for precise alignment:

The three fine, sharp and clearly visible 360° green laser lines (two vertical and one horizontal) form right angles (90°) to each other.

Green laser lines are three times more visible to the human eye than red ones.

Continuous power supply

The integration of the triple power system ensures uninterrupted work in all layout tasks. Rechargeable lithium-ion batteries provide up to 36 hours of continuous operation. The intensity of the laser lines can be adjusted to save battery, with the added benefit of producing finer laser lines. You can also use alkaline batteries or a power cable.

Working range

The green laser lines have a range of up to 70 metres (230 ft) in diameter, making the Lino L6G the perfect tool for large workspaces. The maximum working distance can be extended up to 140 metres (460 ft) using the Leica RGR 200 laser receiver.

Jobsite ready

The Lino L6G is designed for tough environments. It absorbs shocks and is protected against dust and water splashes (IP54).

Multidirectional alignment

You can position the cross or plumb point of the two vertical laser lines and rotate the horizontal laser line ±10° without altering the position of the plumb point. This allows you to define the position of the Lino L6R laser lines quickly and easily.

Magnetic adapters

Magnetic adapters allow you to easily attach the device to wall mouldings, bars and metal poles. These adapters are perfect for suspended ceiling installations, transferring reference heights and carrying out complex drywall installations.

Preferred settings

You can individually select each 360° green laser line and its power mode so that it turns on or off when starting the device, and the Lino L6G laser will remember the settings when switched on.

Self-levelling

The Lino L6G has a self-levelling function that automatically adjusts its position within a ±4° range when slightly out of level without the need for manual alignment.

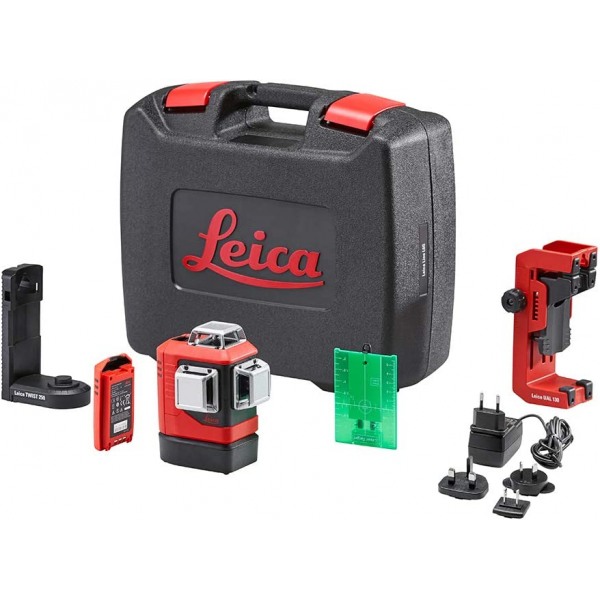

Includes

• Lino L6G-1
• Quick start guide
• Hard case
• Li-Ion battery pack with charger and connectors
• Target plate
• TWIST 250 multifunction magnetic adapter
• UAL 130 wall adapter, safety instructions
• Calibration certificate
• Warranty card
