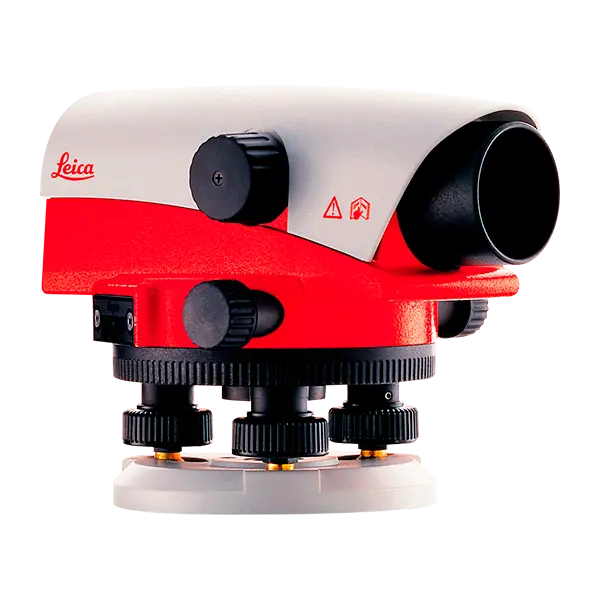

Leica NA724
645,00 € (Taxes not included)
Leica NA724 automatic level.
Leica NA700 levels are an excellent choice for those who need a robust and precise level for work in difficult construction environments. Ease of use, convenient aiming and reading, and a consistently clear view make these levels highly efficient in daily work.
In addition, shock resistance and the IP57 rating for water and dust resistance ensure that Leica NA700 levels are durable and reliable in adverse situations. In short, these levels offer an exceptional combination of extreme robustness and optimum precision, making them difficult to beat in their class.
Request more information
Leica NA724 Automatic Level
The Leica NA724 automatic level features 24x magnification and a standard deviation of 2.0 mm per 1 km of double-run levelling, as well as a 360º horizontal circle.
Leica NA700 levels withstand the most challenging construction environments. Save time and money by avoiding regular checks in the workshop or constant readjustment.
NA700 levels are tools designed to operate reliably and accurately in difficult working conditions, such as heavy rain, dusty environments and construction machinery vibrations. In addition, these levels have IP57 protection against dust and water, allowing them to be immersed in water without affecting their performance.
With NA700 levels, downtime is kept to a minimum, as their high brightness provides excellent contrast and a sharp image, allowing ergonomic and comfortable reading even in low light. In addition, the nitrogen-filled telescope prevents the lens from fogging, ensuring a clear view at all times.
These levels have the most stable and reliable compensator on the market, reducing maintenance costs to a minimum. Even in locations with construction machinery vibrations, NA700 levels provide precise levelling results.
In addition, the NA700 series offers a variety of levels suitable for each application, including distance measurement, datum line assignment, height difference definition and height reading.
Additional information
| Zoom | 24x |
|---|---|
| Image | Right |
| Objective lens diameter | 36 mm |
| Minimum aiming distance | 0,5 m |
| Gas refill | Yes |
| Angle measurement | 360 degrees / 400 gon (selectable) |
| Multiplication factor | 100 |
| Addition constant | 0 |
| Spirit level | 10' / 2 mm |
| Focus screw | Simple |
| Horizontal adjustment screw | Two sides, endless |
| Standard deviation per double kilometre | 2 mm |
| Measurement at 30 m | 1,2 mm |
| Accuracy (standard deviation) | < 0,5" |
| Operating range | ± 15' |
| ImpactoISO | 9022-33-5 |
| Water and dirt protection | IP57 (full immersion) |
| Work | -20ºC to +50ºC |
| Storage | -40ºC to +70ºC |
| Dimensions | 19x12x12 cm |
| Weight | 1,6 kg |
