Single Channel Node

Single Channel Node | Move Solutions

8 different models to ensure maximum compatibility

The Single Channel Node is available in 8 models, each designed for a different probe interface. Refer to the following table to select the model that best suits your requirements.

Move Solutions Single Channel Node applications

Geoenvironmental monitoring Analyse ground displacement, including settlement and lateral movement, as well as the stress-strain condition of the soil using inclinometer probes and vibrating-wire sensors. External atmospheric conditions such as wind direction and speed, rainfall, humidity and temperature can also be monitored.	Hydrogeological monitoring Using sensors such as piezometers, groundwater and surface-water levels can be monitored and correlated with ground subsidence values.	Structural monitoring Crack meters make it possible to monitor potentially hazardous crack patterns. The stress-strain condition of structural elements can also be monitored using strain gauges and by correlating the data with temperature.	Geotechnical monitoring By installing load and pressure cells in the ground, it is possible to monitor both the pressures exerted by the soil and the distribution of loads on foundations, as well as their deformation.

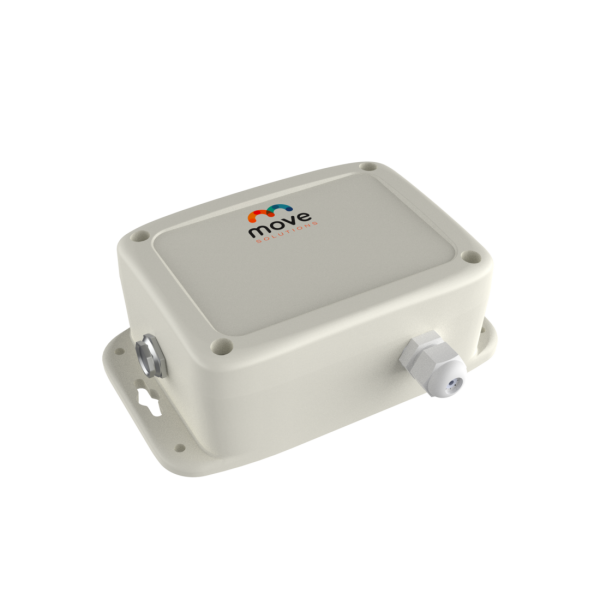

The Single Channel Node is a wireless data logger that enables geotechnical probes to communicate via LoRaWAN. Each node supports one geotechnical probe and can accommodate an additional NTC thermistor. The Single Channel Node can be configured through the Move Cloud Platform, allowing different parameters to be set remotely and the collected data to be monitored at any time. This new node offers a longer battery life, a wider range of compatible probes and a new accelerometer-triggered acquisition mode.

Key parameters:

• LoRaWAN wireless communication for wired geotechnical sensors
• Integrated long-life battery
• Acquisition frequency configurable remotely
• Two acquisition modes: scheduled and triggered by unusual events
• Auxiliary NTC reading capability, except on DECKSCN-PT1 and DECKSCN-NTC nodes
• Improved accuracy
• Internal antenna
• Compact enclosure measuring 130 × 171.2 × 62 mm
• Deep integration with the Move Solutions Cloud Platform
• Easy installation with mounting options suitable for any structure
• IP67 protection rating

Some of the geotechnical probes compatible with the Single Channel Node include:

• Crack meter
• Strain gauge
• Temperature probe
• Inclinometer probe
• Pressure cell
• Load cell
• Hygrometer
• Piezometer
• Anemometer
• Rain gauge
• Radar level sensor

Easy installation of the Move wireless monitoring system

Installing a complete wireless sensor system on site is quick and easy: simply secure each device to the structure to be monitored using at least two screws and power the LoRaWAN gateway. The entire system can be configured remotely before, during or after installation using a laptop or tablet. Once the system has been installed and configured, the Move wireless monitoring system will begin taking measurements, allowing remote monitoring to start immediately.

How the Move wireless monitoring system works

The wireless sensor system automatically transmits measurement data via LoRaWAN to the on-site gateway, which then sends the received data via 4G or LTE to the online servers. The Move Cloud Platform is a cloud-based web tool that allows users to access, view and export measurement data and configure the settings of the entire sensor system. The Move Cloud Platform can be accessed 24 hours a day, 7 days a week, from anywhere in the world and from any device. One of its main advantages is that it provides remote access to measurement data and enables the remote configuration of all installed sensors, saving both time and labour. Measurement data can also be analysed using the processing algorithms included in the service. Complex calculations, correlations and analyses can be performed automatically and effortlessly. Measurement data can be exported in CSV format at the touch of a button. Alerts can also be configured for multiple recipients, who will receive threshold-crossing notifications by email.

• Easily install the entire system on the structure without any wiring.
• Configure all wireless sensors quickly and remotely.
• View measurement data in real time from any location or device, 24 hours a day, 7 days a week.
• Process the collected data using the implemented algorithms.
• Continuously monitor the operating status and signal quality of the system remotely.
• Customise alarm notifications and receive threshold-exceedance alerts by email.
• Optionally integrate the data into your own platform through an MQTT bridge, FTP or API calls.
